Description

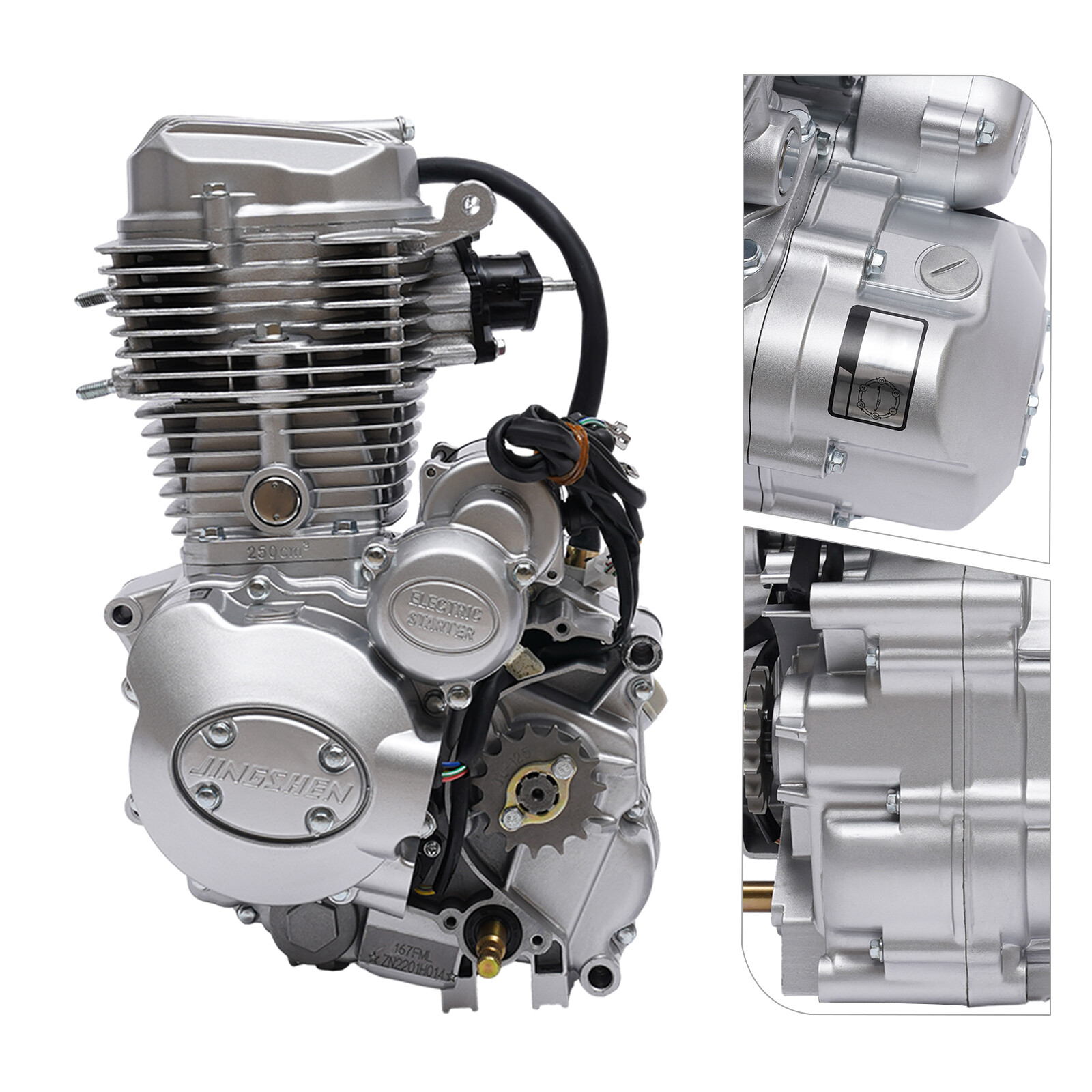

If you are a driving enthusiast who loves freedom and pursues speed and passion, our 4-stroke ATV motor engine will be your ideal choice. Its excellent performance and stable power output make your driving more enjoyable and comfortable. Buying this 4-stroke ATV motor engine means choosing a high-quality, high-performance, and safe driving product is widely applied to ATV motorcycles, as long as the size Type: Single Cylinder, 4 Stroke
Material: Aluminium, Cast Steel
Engine Cooling Type: Air Cooling
Ignition System: CDI (Not Included)
Start Mode: Kick-starter; Electric
Clutch Type: Manual Wet Multi-Disc
Transmission: 5-speed, Manual Gear Shift
Displacement: 200CC/250CC
Minimum No-load Stable Speed: 1400 (1 ± 10%) R / min
Compression Ratio: 10.0:1
Bore Stroke: 70*64mm/2.75*2.51inch
Max Power: 11.3Kw/h
Max Torque: 18N-m
Max Speed: 7500rpm
Horsepower: 14HP
Air Inlet and Exhaust Valve Clearance: 0.05 ~ 0.07 mm (Cold State)
Min Fuel Consumption: ≤354g/kW.h
Spark Plug: D8TC (Not Included)
Carburetor Type: PZ30 (Not Included)
Primary Reduction Ratio: 4.055
Transmission Ratio of Each Gear: First Gear: 2.909; Second Gear: 1.786; Third Gear: 1.375; Fourth Gear: 1.167; Fifth Gear: 0.900
Lubricant Capacity: 1400ml/0.36 Gallons
Lubricant Type: SL10W/40 (Not Included)
Crankshaft Diameter: 2cm/0.78inch
Crankshaft Length: 1.6cm/0.62inch
Gasoline Type: ≥ 92 #
Gross Weight: 30.85kg/68.01lbs
Net Weight: 28.5kg/62.83lbs
Product Size: Size: Included
1* ATV Engine
1*Chain Cover
All Accessories for Assembly
Key Features
Strong Power: This ATV motor engine boasts a robust 14HP horsepower, a displacement of 200cc/250cc, and a max rotating speed of 7500RPM, which provides you with strong power and ensures that your drive will be very smooth and powerful.
Durable and Sturdy: The engine is equipped with premium aluminum and cast steel, ensuring superior performance and a longer lifespan and adapting to complex environments and conditions.
Effective Cooling System: By adopting an air cooling system, the temperature of the engine can be quickly reduced, effectively preventing overheating and ensuring smooth and long-lasting driving.
Adjustable Speed: Its 5-speed manual clutch transmission provides you with high-precision gear shifting control, so it allows you to easily adapt to various changes. It makes your driving experience more exciting under different road conditions.
Easy to Operate: The CDI ignition system (not included) leads to higher energy and ignition efficiency. So you can start the motor engine quickly and safely.
Easy to Install: Our ATV motor engine is pre-installed and you only need to spend a little time and effort to complete the remaining parts, enjoying a sense of achievement!
Closed Design: The closed design effectively prevents dust, water, oil, etc. from entering the machine, while minimizing the need for daily maintenance as much as possible.
Protective Packaging: This product comes in a custom foam that resists common compression and falls to prevent product damage in Oil Filter: It can help filter solid stains from lubricating oil, largely reducing wear and prolonging the engine service life.
Clutch Lever: It can transfer and cut off the power promptly, and prevent overloading of the transmission system, ensuring that the engine starts smoothly.
Gearshift Shaft: It can control the vehicle's speed to suit different usage scenarios.
Shockproof Installation Hole: It is used to install shock absorbers to reduce the vibration of the motorcycle during driving, thereby improving its driving comfort.
Forged Crankshaft: It adopts high-quality metal design to ensure high safety and stability during operation.
Clear Wires: For different wires, they have different colors, thus easily distinguishing and connecting them without confusion.
Notes
1. Professional installation is highly recommended.
2. Please note that this product is for motorcycles only.
3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
The actual displacement of this product is 200CC, which is a universal style compared to the 250CC model and can be installed and used interchangeably.PaymentDelivery detailsTerms of salesAbout usContact usPaymentWe accept ebay payment 。Fees such as import duties, taxes are not included in the item price or shipping costs. These charges are the buyer's responsibility.Delivery detailsShipping:2-9 working days to: USATerms of sales- We maintain high standards of excellence and strive for hundred percent customer satisfaction. Feedback is very important to us. We hope that you contact us immediately before you give neutral or negative feedback, so that we can address your concerns. It is impossible to address issues if we do not know about usYour satisfaction is our ultimate goal. We work hard to earn your trust and future business. Our certified technicians have tested each item before shipping. The unit comes with 1 year limited warranty on all manufacturing defects.a) If you receive a defective item, you may return it or ask for a discount. Please contact us within 14 days after you receive the package.b) What you returned must be intact and in its original packaging as re? u. Customer is responsible for shipping costs of the returned item.c) We will cover the cost of shipping back t with the shipping rate indicated in the registration page. We will send you a new unit or refund the full payment you paid.Thank you.Contact usBusiness Hour Business Hour: Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time)Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday.Please contact us with ebay message.Please feel free to contact us if you have any questions. Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time)Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday.Please contact us with ebay message.Please feel free to contact us if you have any questions.BrandUnbrandedCrankshaft DirectionVerticalFuel TypePetrolFeaturesElectric StartApplicationCement Mixer, Compressor, Generator, Lawn Mower, Pressure Washer, ScarifierEngine TypeSingle Cylinder, 4-Stroke, VerticalPower SourceGasolineEngine Size250 ccIndoor/OutdoorIndoor & OutdoorTransmission5-speed(Cycle Gear,No reverse AlloyCooling SystemAir CooledIgnition modelPZ30(Not Included)Fuel SupplyCarburetor AtomizationHorsepower14HPCountry of OriginChinaItems Included1* 4 Stroke Engine
