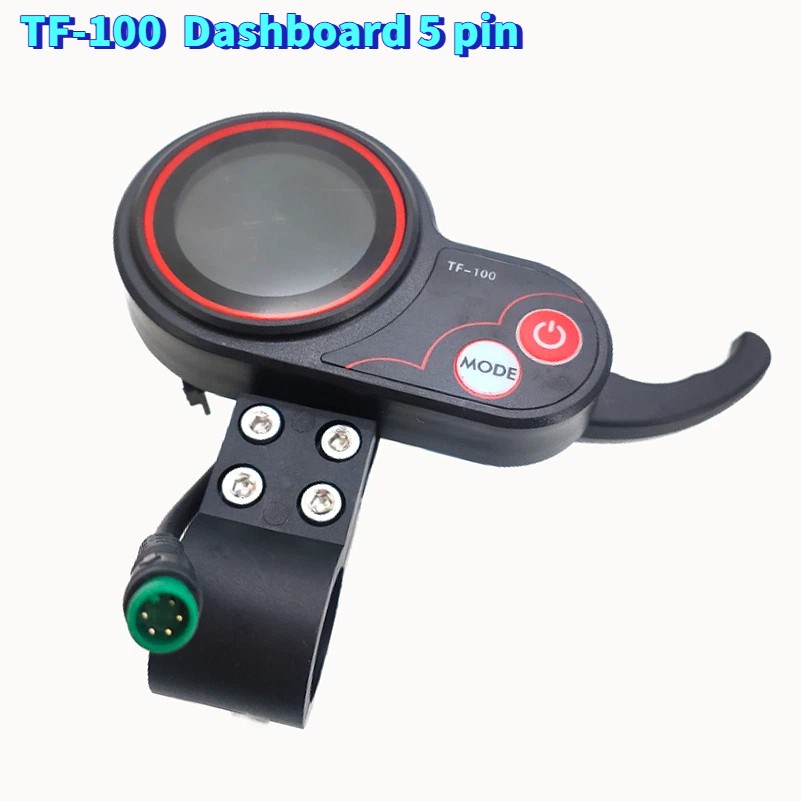

5pin TF100 Dashboard for KUGOO M4 Electric Scooter Instrument Display Parts For Sale

5pin TF100 Dashboard for KUGOO M4 Electric Scooter Instrument Display PartsDescription:

brand new and high quality

Made of high-quality materials,

Suitable for kugoo M4 electric scooters,e-bike
Suitable for various e-scooters / electric scooters 36 Volt

Easy assembly with advanced expertiseConnects to 36V controller / controller for brushless / brushless motors with corresponding 5-pin clutch5-pole connection cable with matching plug includedAs an inexpensive replacement for your defective display (Attention - not suitable as a replacement for the 6-pin version)

Technical data:

LCD display colour with thumb gasFor vehicles with on-board voltage 36 VoltDisplay function: speed indicator, battery indicator, fault indicator, headlamp indicator, cruise control indicator, full speed, total mileage, single mileage, real-time voltage, Operating current, operating time, start modeCable length: approx. 100mm incl. plugSuitable for handlebars 22mmMaterial: ABS plasticWaterproofConnector 5-pin / around 7mm as in photo5-pole connection cable with matching plug includedWith USB port on the back to charge the smartphone etc.
Connections to Pins:1. Red wire (D+): positive2. Black wire (GND): negative3. Blue Wire (DS): Controller Electric LockGreen Wire (RX): Communication Reception5. Yellow Wire (TX): Communication Transmission

Package Includes:

1X TF-100Dashboard 5pin

Note:

.. Please refer to your original product model for purchase. If you have any questions about this type of product, please contact us to avoid choosing the wrong model.

.. Due to differences in lighting and screen, the color of the item may vary slightly from the image.

.. Due to manual measurement, please allow a difference of 1-5mm. If you have any questions, please contact us in time.
