Take the guesswork out of bridge placement.
This precision guitar layout jig is designed for luthiers who want fast, accurate, and repeatable results when locating and aligning bridges on acoustic guitars.
Unlike basic alignment tools, this jig does three critical jobs in one setup:
1. Automatically Centers on the Neck
Two positive-locking, self-centering mechanisms grip the neck and align the jig perfectly to center—no measuring, no eyeballing.
2. Calibrates to Your Scale Length
A built-in adjustable rail allows you to set and lock your exact scale length, ensuring proper bridge placement every time.
3. Locks for Repeatable Accuracy
Once dialed in, all components tighten securely, giving you consistent, repeatable results across multiple builds.
How It Works:
Hook the front lip onto the end of the fretboard
Engage the self-centering clamps on the neck
Slide the jig to your desired scale length
Lock everything down
Position and align your bridge with neck alignment system
Positive locking adjustment points
Adjustable for different scale lengths
Rigid, stable construction
Designed for acoustic guitar tops
Perfect For:
Acoustic guitar builders
Luthiers (beginner to pro)
Small shops and repeat production
DIY guitar kits and custom builds
Made in USA
Designed and built in Colorado by Usonian Guitar Co.
What You’ll Receive:

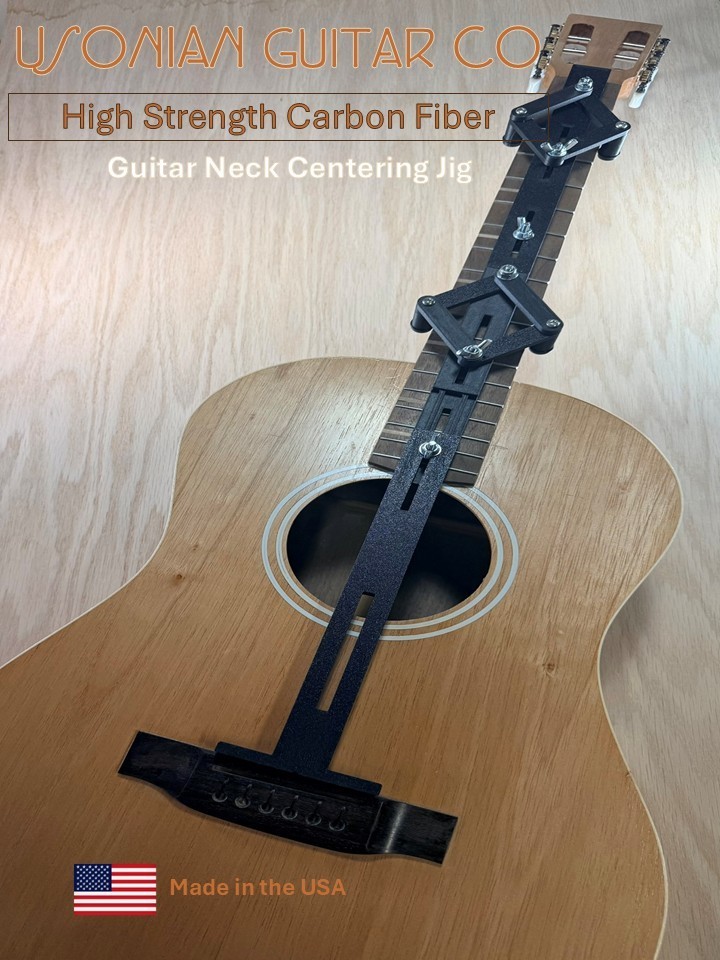

Bridge alignment & scale length jig (as shown)
Why This Tool?
Other methods require multiple rulers held against the neck and squares to layout the bridge placement.
This tool simplifies the process by using auto centering and locking mechanisms to create accurate repeatable Neck Centering & Bridge Alignment Jig
- Adjustment: Extendable length
- Centering: Positive locking Most acoustic guitars
- Material: High-strength Carbon Fiber
- Color: Black (as shown)
What’s Included
- (1) Guitar Neck Centering & Bridge Alignment Jig
Guitar shown in photos is for demonstration only and is not included.
