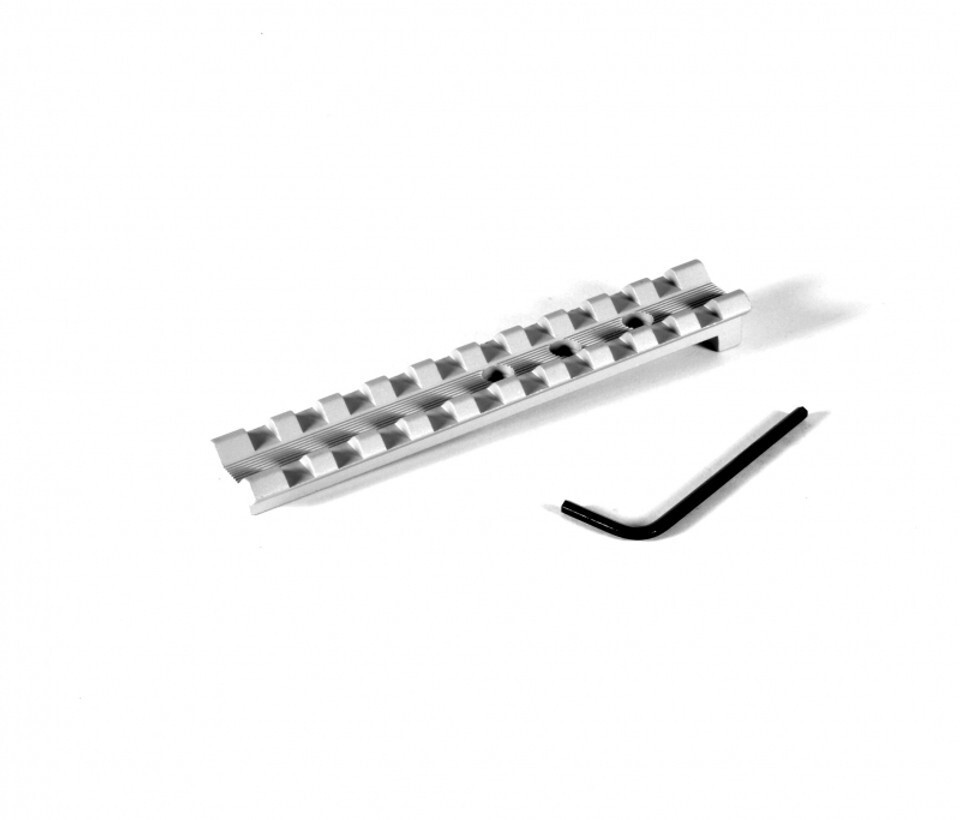

Silver Smith and Wesson (S&W) Revolver Picatinny Rail For Sale

This mount fits:

• Smith & Wesson Revolver
  This mount will fit K, L, N, and X frames.

The bolt pattern on this mount fits factory drilled Smith & Wesson revolvers. The mount is also available undrilled, to accommodate unconventional bolt patterns.Swing the cylinder out on your gun and look under the top strap. If you see the holes under the sight, through the top strap, your gun is factory drilled and tapped. Our mount fits snugly into the rear sight cut and has a recoil shoulder, unlike some mounts that are simply radiused to fit the top radius and do not go into the rear sight cut.If your top strap is not already drilled and tapped (pictured above), our mount will not work with your gun. You can have a competent and qualified gunsmith drill and tap the top strap with the standard S&W hole pattern which will allow you to use our mount.

SpecificationsRail Type:One Piece Picatinny
Machined from:Domestic 6061 T6 Extruded Aluminum
Finish:Matte Black Anodizing
Overall Length:4.306"
Height:.4" (Top of Receiver to Top of Picatinny)
Weight:2 oz.
Quick Disconnect Ring Specs:20 in/lbs
Mounting Hardware:#6-48 X 1/4 Screws and T-10 Bit Included

We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.

Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.

We machine these in our shop using one of our machining centers. After machining, the mounts are tumbled, sand blasted, and Type II anodized for long lasting durability.

Installation: We recommend 20 inch lbs of torque and a drip of blue loctite (loctite is available through our website and is sold separately).

The entire mount and accessories (from the mounting screws and wrench down to the packaging) are made in the USA.
